Jumbo Spooling line
Model: Pegase line
Category: Nonwoven production machinery (Accumulators, slitters and winders)
Exhibitor: SPOOLEX
Booth No: J136
Characteristic
Spoolex, through its Calemard® by Spoolex brand, offers, a range of 𝗵𝗶𝗴𝗵 𝗽𝗿𝗼𝗱𝘂𝗰𝘁𝗶𝘃𝗶𝘁𝘆 𝗝𝘂𝗺𝗯𝗼 𝗦𝗽𝗼𝗼𝗹𝗶𝗻𝗴 𝗹𝗶𝗻𝗲𝘀 for the production at 𝗵𝗶𝗴𝗵 𝘀𝗽𝗲𝗲𝗱 of high quality jumbo spools with 𝘁𝗲𝗻𝘀𝗶𝗼𝗻 𝘀𝗲𝗻𝘀𝗶𝘁𝗶𝘃𝗲 𝗺𝗮𝘁𝗲𝗿𝗶𝗮𝗹𝘀
𝗠𝗼𝗱𝘂𝗹𝗮𝗿 𝗱𝗲𝘀𝗶𝗴𝗻:
● Double unwinding machine
● Ultrasonic splicing module
● Slitting module with tension and guiding control
● Precise conveying

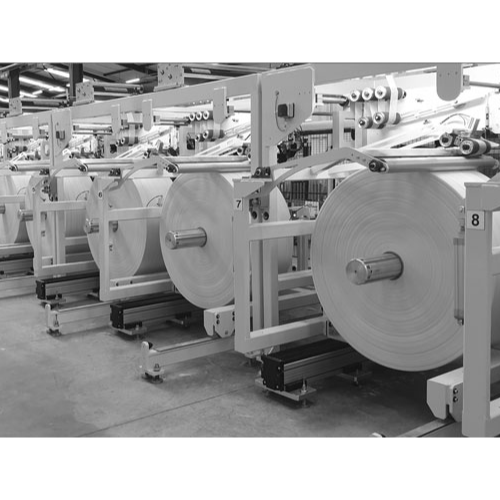

● Jumbo spooling units
𝗣𝗿𝗼𝗱𝘂𝗰𝘁𝘀::
Air Through Bonded (ADL, Top sheet...) | Multi-layer materials | Elastic materials | Airlaid...
𝗣𝗿𝗼𝗱𝘂𝗰𝘁𝗶𝘃𝗶𝘁𝘆:
State of the art technical solutions
● Compact machine
● High speed
● Double shaft unwinder for wide mother roll loading in hidden time
● High capacity unwinder
● Automation for lower operator contents
● High safety systems
● Touchscreen operator panel with recipe storage
● VPN capability for remote trouble shooting assistance
● Set of options such as datacollect, dust extraction system, trimmed edge extraction
𝗙𝗹𝗲𝘅𝗶𝗯𝗶𝗹𝗶𝘁𝘆:
● Different automated levels depending on your needs and organization:
P̲E̲G̲A̲S̲E̲ ̲2̲: Semi-automatic solutions for splicing and loading/unloading
P̲E̲G̲A̲S̲E̲ ̲3̲ ̲a̲n̲d̲ ̲P̲E̲G̲A̲S̲E̲ ̲4̲,̲ the PREMIUM solutions: Fully automated line with automatic splicing and loading/unloading | Larger capacities and working widths
● Modular design from 4 to 10 and more spooling units: You can invest only on what you need, when you need!
● Conventional spooling or step-winding (in option on Pegase 2)
𝗤𝘂𝗮𝗹𝗶𝘁𝘆:
● Low winding tension (3N mini.) preventing the most fragile materials from deterioration
● Very precise web guiding and strip conveying from the slitting to the spoolers
● Self-traversing winding technology for perfect and accurate strip tension control
● Ultrasonic splicing unit: Very accurate technology to produce unequalled quality joins
𝗧𝗲𝗰𝗵𝗻𝗶𝗰𝗮𝗹 𝗰𝗵𝗮𝗿𝗮𝗰𝘁𝗲𝗿𝗶𝘀𝘁𝗶𝗰𝘀:
● Mother roll: 1.7 m for Pegase 2 | 2 m for Pegase 3 & 4
● Spool dim.: diam. 1.2 m x 0.85 m - 200 kg
● Max. running speed: 600 m/min for Pegase 2 and Pegase 3 | 800 m/min for Pegase 4
● Mini. slitting width: 35 mm for Pegase 2 and Pegase 3 | 50 mm for Pegase 4
● Many options and accessories available
