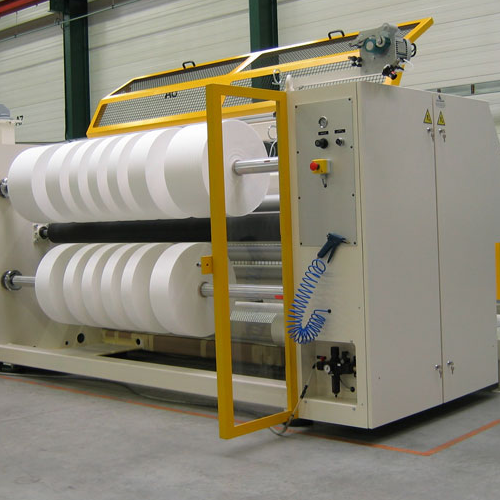

Standard Slitter-rewinder
Model: Athena, Vega
Category: Nonwoven production machinery (Accumulators, slitters and winders)
Exhibitor: SPOOLEX
Booth No: J136
Characteristic
Spoolex through its Calemard® by Spoolex brand, offer a range of 𝘀𝘁𝘂𝗿𝗱𝘆 𝗮𝗻𝗱 𝗰𝗼𝘀𝘁-𝗲𝗳𝗳𝗲𝗰𝘁𝗶𝘃𝗲 slitter-rewinders for versatile and quality production
Based on a modular design for higher adaptability to your needs:
● Integrate or separated unwinder with tension control and guiding
● Different cutting technologies available
● Centre winding principle for rewinding on two shafts with tension control
𝗣𝗿𝗼𝗱𝘂𝗰𝘁𝘀
Woven fabrics | Nonwovens fabrics | Adhesive tapes | Foams | Laminates
𝗣𝗿𝗼𝗱𝘂𝗰𝘁𝗶𝘃𝗶𝘁𝘆
● Simple and cost-effective machines
● Compact and easy to use machines
● Ancillary equipment to reduce downtime and ease production re-starts
𝗤𝘂𝗮𝗹𝗶𝘁𝘆
● Controlled winding tension preventing the products from any deterioration
● Guiding to minimize selvedge scrap and optimize the cutting accuracy
● Hot, crush, shear, razor blades, combined or ultrasonic cutting for a perfect slitting quality whatever the product or application
𝗧𝗲𝗰𝗵𝗻𝗶𝗰𝗮𝗹 𝗰𝗵𝗮𝗿𝗮𝗰𝘁𝗲𝗿𝗶𝘀𝘁𝗶𝗰𝘀:
● Mother rolls : 1.8 m to 3.4 m (as option) x diam. 400 mm up to 1.2 m (as option)
● Secondary rolls: diam. 400 mm to 1 m (as option)
● Max. running speed: from 60 to 100 m/min
● Min. slititng width: Crush 20 mm| Shear 50 mm | Hot 10mm
● Different options available: Separate unwinder | Double unwinding shaft | Shaftless unwinder | Slittng wodth adjustment system | crap extractors
