MICROBOND RS systems

Model: Herrmann MICROBOND RS systems

Exhibitor: HERRMANN ULTRASCHALLTECHNIK GMBH & CO. KG

Booth No: J429

Characteristic

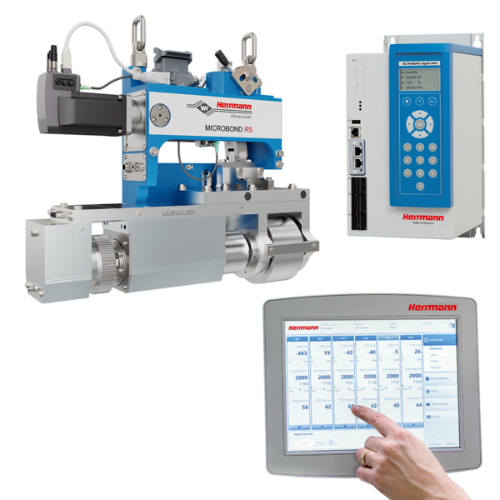

The MICROBOND RS system consists of an actuator with the modular ULTRASPIN rotary module. Depending on application requirements, different operating frequencies and variable sonotrode widths can be selected. Different high-performance generators designed for continuous ultrasonic operation can be selected. The patented Microgap control also allows for precise gap stabilization for this module concept. The MICROBOND weld process controller is used for visualization and control of the continuous weld process and completes the configuration of the overall system.

- 30 and 35 kHz operating frequency
- 600 – 1200 W generator power
- 60 – 1500 N weld force
